G6150/G6300 Series
| Previous | 2 / 2 | Next |
Description
Dellon G series industrial endoscope is suitable for small space video detection, according to engine, parts, hydraulic, steel, casting, the interior of the container body, crack, weld, jam, defects are detected directly.
.jpg)
.jpg)
.jpg)
Dellon G series industrial endoscope is suitable for small space video detection, according to engine, parts, hydraulic, steel, casting, the interior of the container body, crack, weld, jam, defects are detected directly.
Basic Info
Display: 3.5 Inches TFT LCD
Probe Diameter: 6.4 Mm
Depth Of Field: 15mm-infinity
Tube Length: 1.5 M-3 M
Probe Diameter: 6.4 Mm
Depth Of Field: 15mm-infinity
Tube Length: 1.5 M-3 M
Additional Info
Packaging: Cartons
Productivity: 3000Sets per year
Brand: Dellon
Transportation: Land,Air
Place of Origin: Zhengzhou,China
Supply Ability: 300Sets per month
Certificate: ISO:9001,CE,FCC,RoSH
HS Code: 8525803100
Port: Beijing,Shanghai,Shenzhen
Productivity: 3000Sets per year
Brand: Dellon
Transportation: Land,Air
Place of Origin: Zhengzhou,China
Supply Ability: 300Sets per month
Certificate: ISO:9001,CE,FCC,RoSH
HS Code: 8525803100
Port: Beijing,Shanghai,Shenzhen
Product Description
Pipe Industry Borescope sales

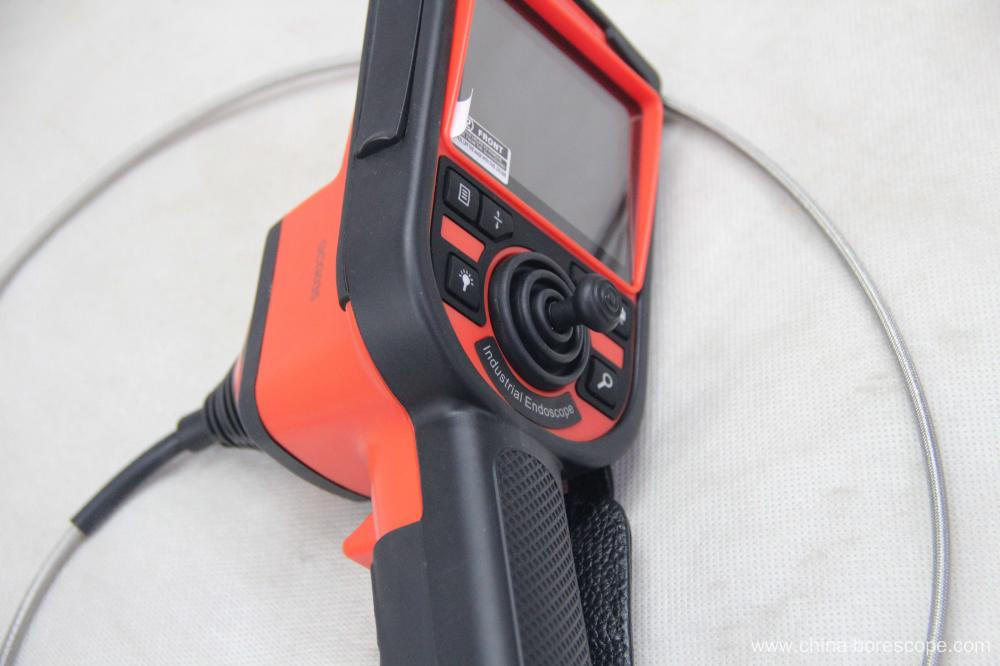

Model:G6150/G6300 All Way Articulating 6.2 mm Pipe Industry Borescope
Pipe industry Borescope Features:
Joystick-Controlled,360 degree Articulation.
High brightness LED,adjustment 0-5 levels.
Highly Durable and Flexible Insertion Tube.
True Portability in a Compact Package.
High sensitiveness CCD/CMOS image sensor.
AA batteries and 5V AC adapter
Stainless steel inserted cable,anticorrosive and wearable.
Pipe industry borescope Specification
Pipe industry borescope Operating Unit:
Display:3.5 inches TFT LCD
Interface:Video output(NTSC/PAL),SD,USB and charging port
Power Supply:AA Batteries or AC Adapter
Working Time:≥2 hours
Probe:
Probe Diameter:6.4 mm
Camera Pixel:350,000
Articulation:360 degree all-way
Tube Length:1.5m-3m
Material of Tube:Stainless steel
Depth of Field:15 mm-infinity
Viewing Angle:90°
Bending Angle:≥120°
Illumination:
Type:6 pcs white light LED
Brightness adjustment:0-5 levels
Others of Pipe industry borescope:
Zoom:5 X
Memory:8G SD card
Waterproof Level:IP65/IP67(Optional)
System weight:590 g
Dimensions:470*360*150(mm)
Looking for ideal Pipe Industry Borescope Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Pipe Industry Borescope Sales are quality guaranteed. We are China Origin Factory of Pipe Industry Borescope Wholesale. If you have any question, please feel free to contact us.Product Categories : Industry Borescope > Pipe Industry Borescope
